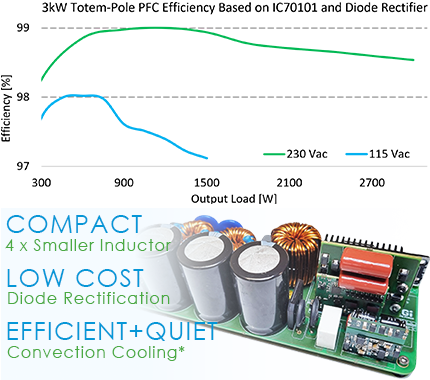

ICERGi 70101 Totem-Pole PFC Controller delivers 99% Efficiency with Diode Rectification at Lower Cost

COP26 has highlighted the need to save energy and the pressure is on for power supply designers to deliver improved energy efficiencies. Totem-pole PFC designs using the existing commercially available control ICs still have not escaped from the power conversion trilemma of efficiency, size, and in particular – cost which typically will inhibit large scale adoption in price sensitive volume markets.

To date, 99% efficiency is typically achieved by:

• Switching GaN/SiC devices at low frequency of around 65 kHz
• Replacing rectification diodes with high voltage low RDS(ON) MOSFETs

The low switching frequency results in a bulky inductor penalizing the product volume while the use of WBG devices and active rectification materially increases the system BOM cost.

The ICERGi digital totem-pole controller IC70101 resolves this power conversion trilemma by optimizing the switching performance of the totem-pole PFC. Specifically, phase cancellation and active EMI control features enable:

• 75% size reduction in the PFC inductor
• 50% reduction in the switching loss
• 50% cost reduction in the power switches and inductor

All savings combined greatly benefit 700W – 5.5kW PFC applications by achieving 99% efficiency without the need for active rectification which reduces system cost and design complexity.

Key features of the IC70101 totem-pole PFC controller

• Enables peak efficiency >99% @ 230VAC and >98% @ 115VAC with diode rectification at the lowest cost
• Proprietary digital control algorithms for compact inductor and optimal efficiency
• Ideal for ATX/SFX power supplies, refrigeration & HVAC power, server power, and other offline power applications.

Learn more:

• Download the test report for ICERGi 3kW totem-pole PFC.
• Contact ttrongvu@icergi.com, info@icergi.com for the application notes and datasheets of IC70101.
